Chinnery Construction was engaged to deliver the construction of a new water pipeline west of the Hurunui Water Treatment Plant. The project involved the installation of approximately 650 m of DN250 PE100 PN25 pipeline from the existing main on the first terrace toward the farm entrance, including a PN25 sluice valve, tee, and drain/flushing point. The pipeline continued west through a pre-installed highway sleeve and uphill for 376m of DN225 PE100 PN20 pipe, transitioning to DN225 PE100 PN12.5 midway up the hill.

From there, the line extended to connect with the first existing reservoir via the inlet pipework (approximately 280 m), and then a further 1190 m of DN225 PE100 PN12.5 pipeline to the second reservoir for final connection.

Chinnery Construction was responsible for all welding, fittings, and connections, including the provision of test certifications. The project also encompassed full health and safety, environmental management, coordination with suppliers for pipe delivery, and reinstatement of any disturbed surfaces.

Hurunui 1 Pipeline

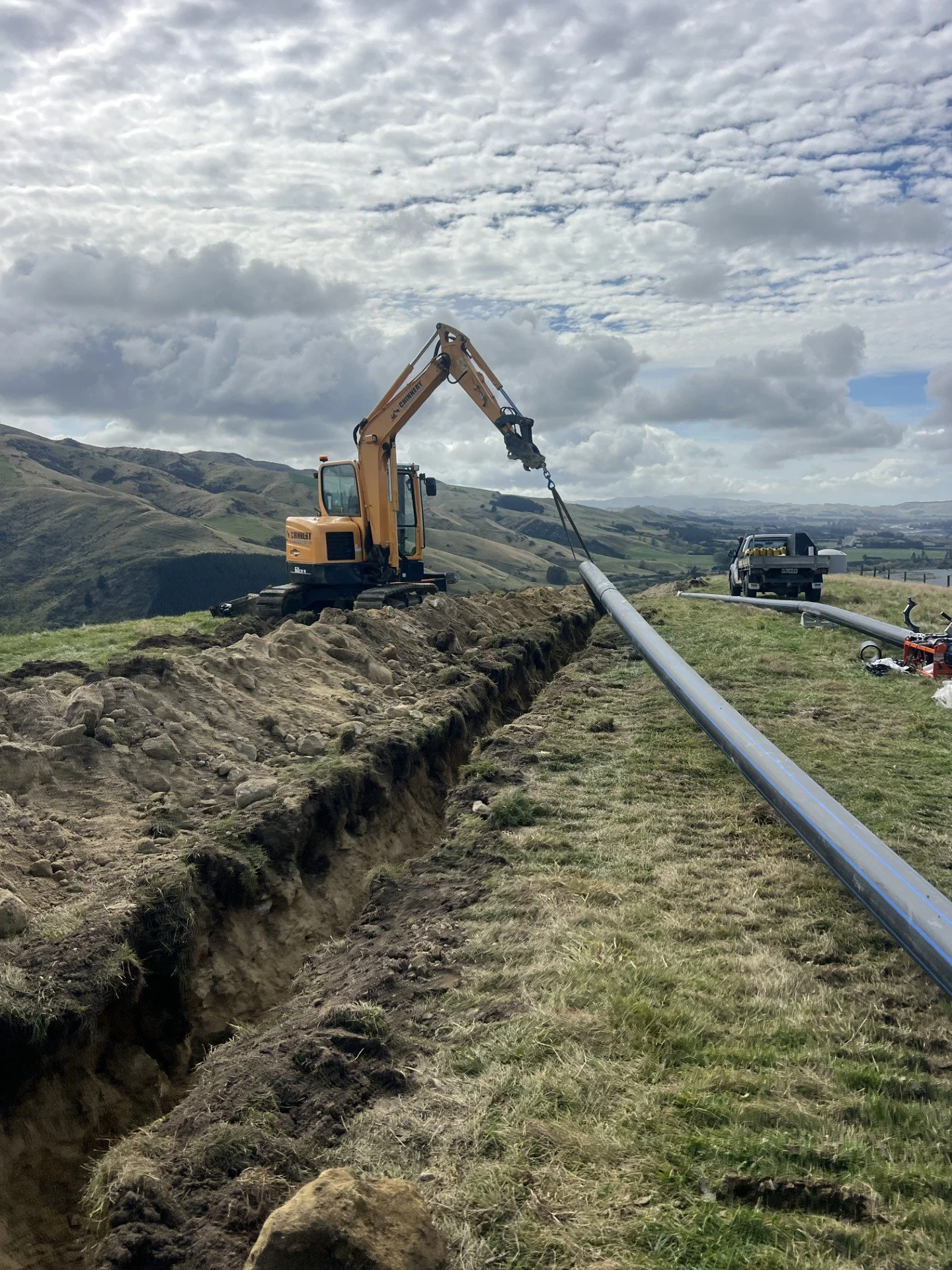

Construction site with an excavator installing a large metal pipe into a trench in a rural landscape with hills, cloudy sky, and a pickup truck nearby.

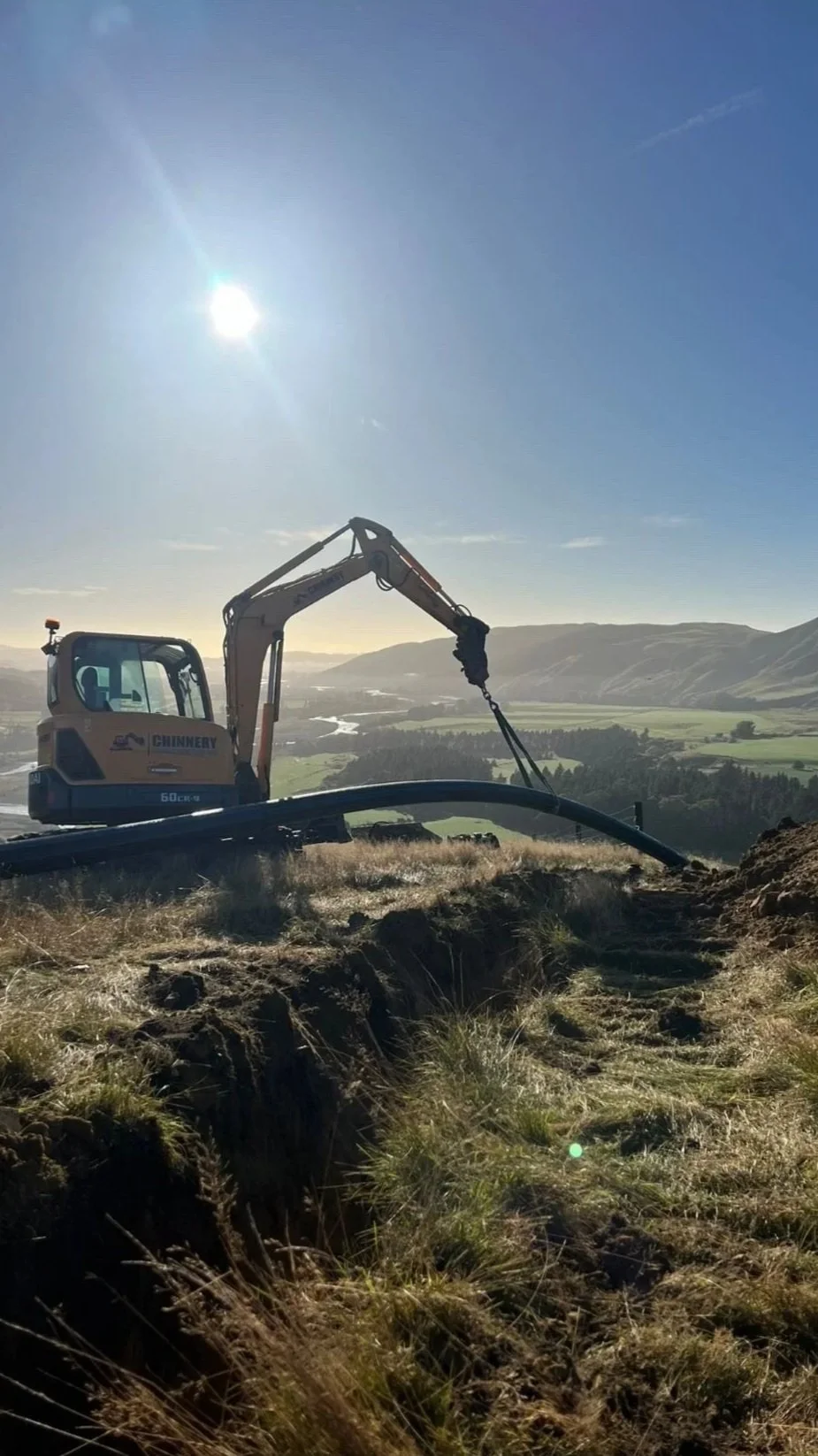

A construction excavator on a hill working to lay down underground pipes with a scenic landscape and river in the background under a clear sky with the sun.

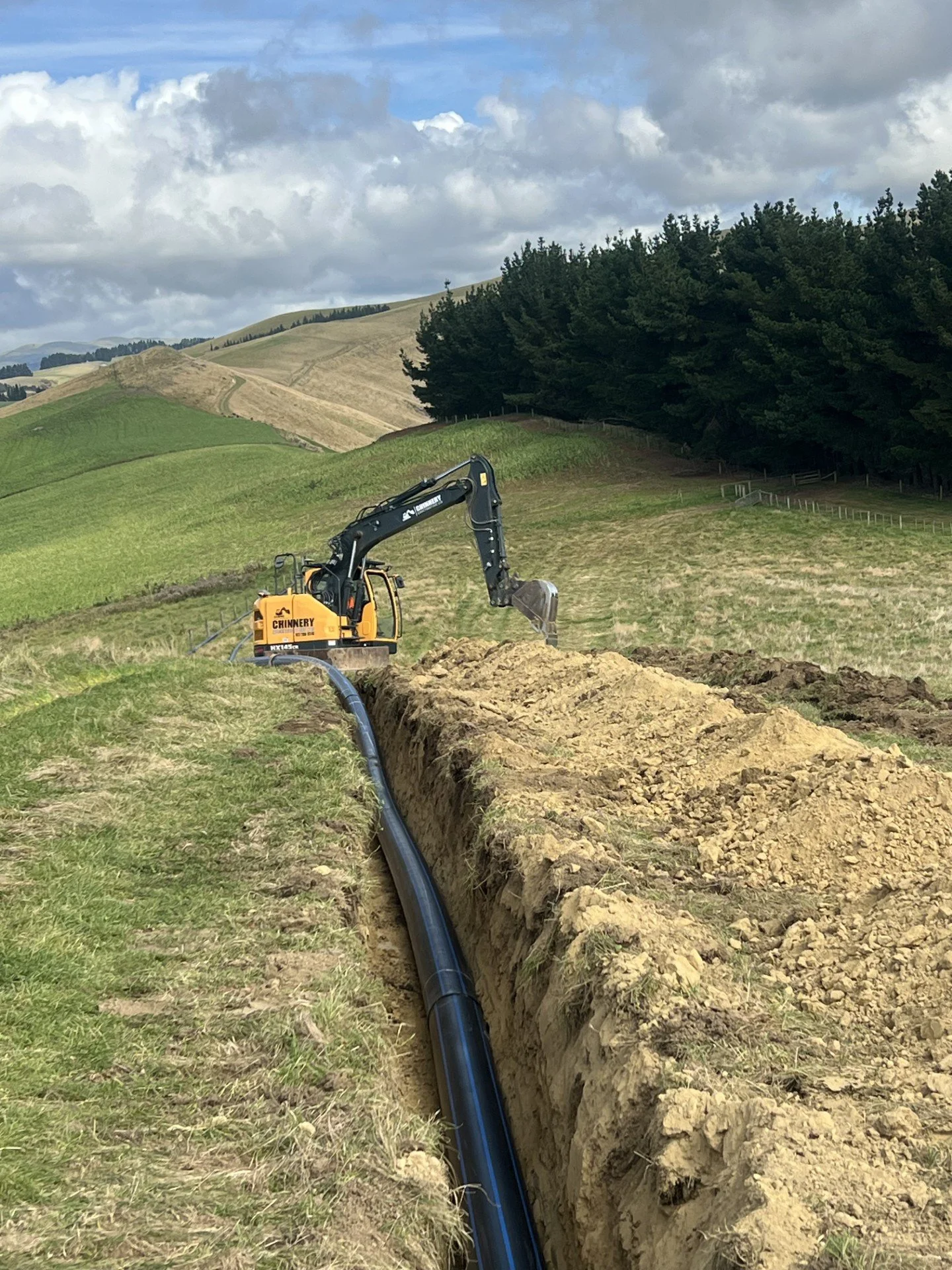

A yellow and black excavator working in a trench on a grassy hillside, with rolling hills and a line of trees in the background under a partly cloudy sky.

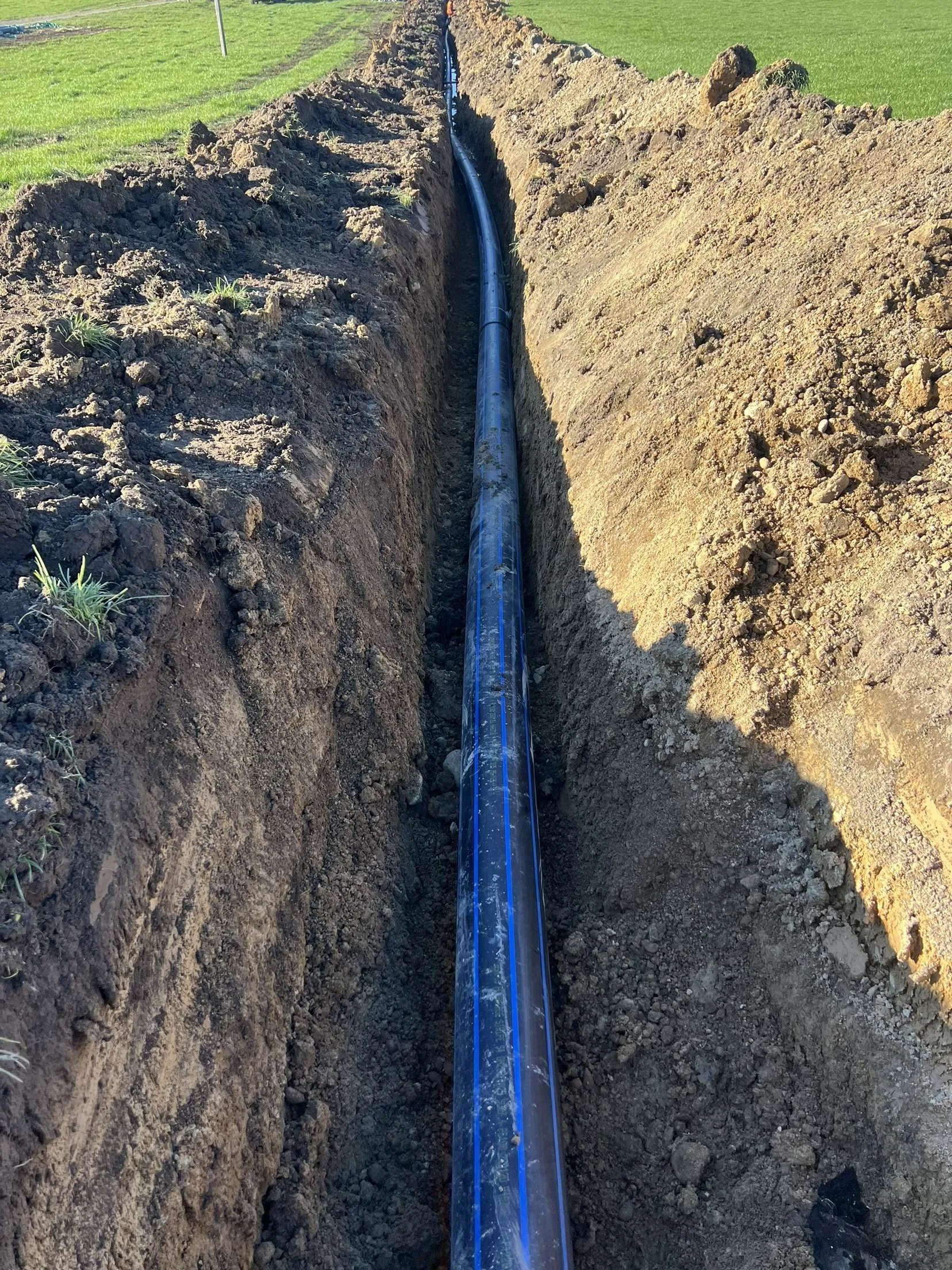

A black pipeline running through a freshly dug trench between green fields.

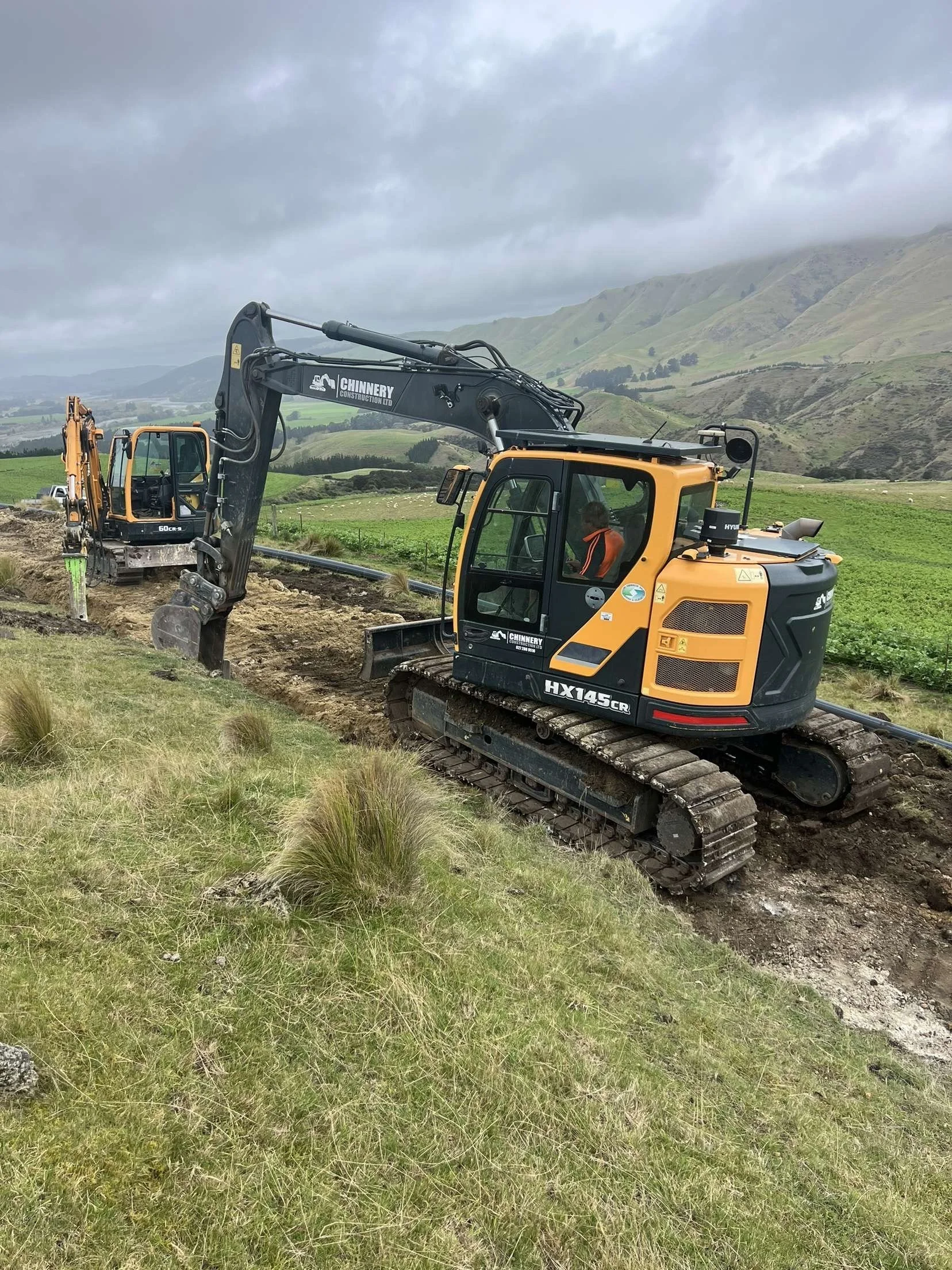

Two excavators working on a construction site in a grassy field with rolling hills in the background.

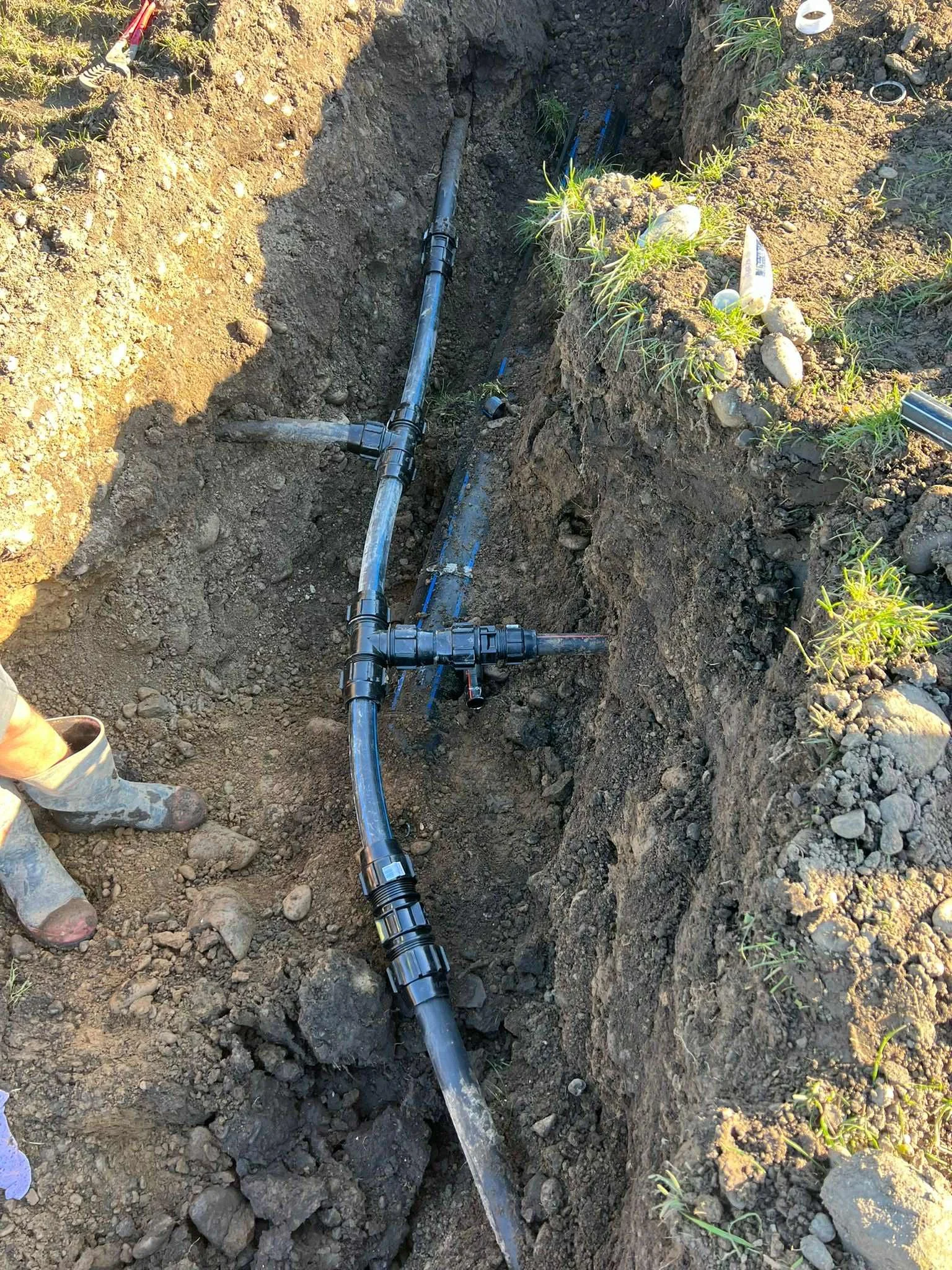

Installation of underground plumbing pipes in a trench with dirt and rocks.

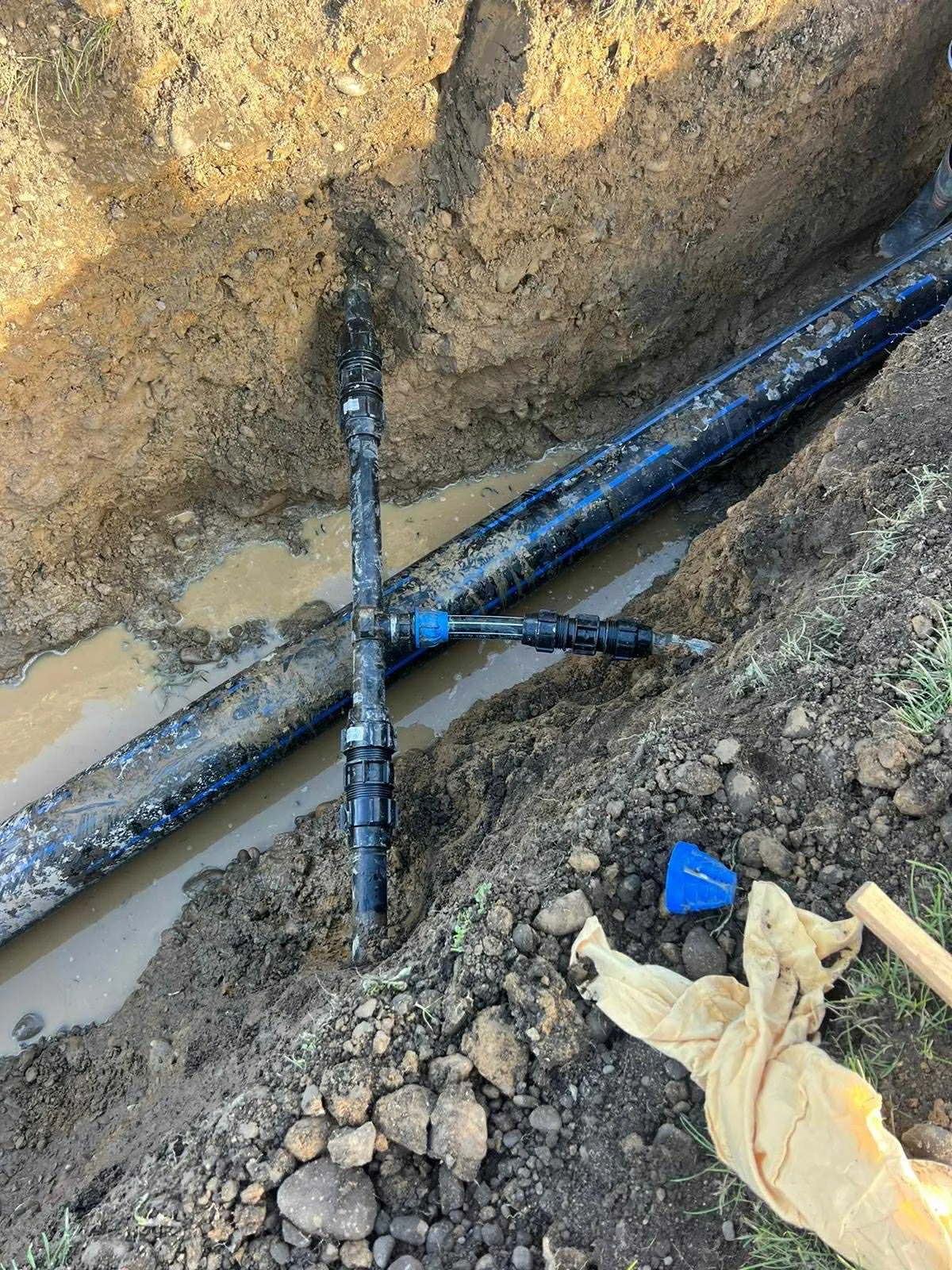

Underground water pipes and fittings in a construction trench filled with muddy water, with dirt and rocks on the sides and a blue plastic cap and yellow glove on the ground.

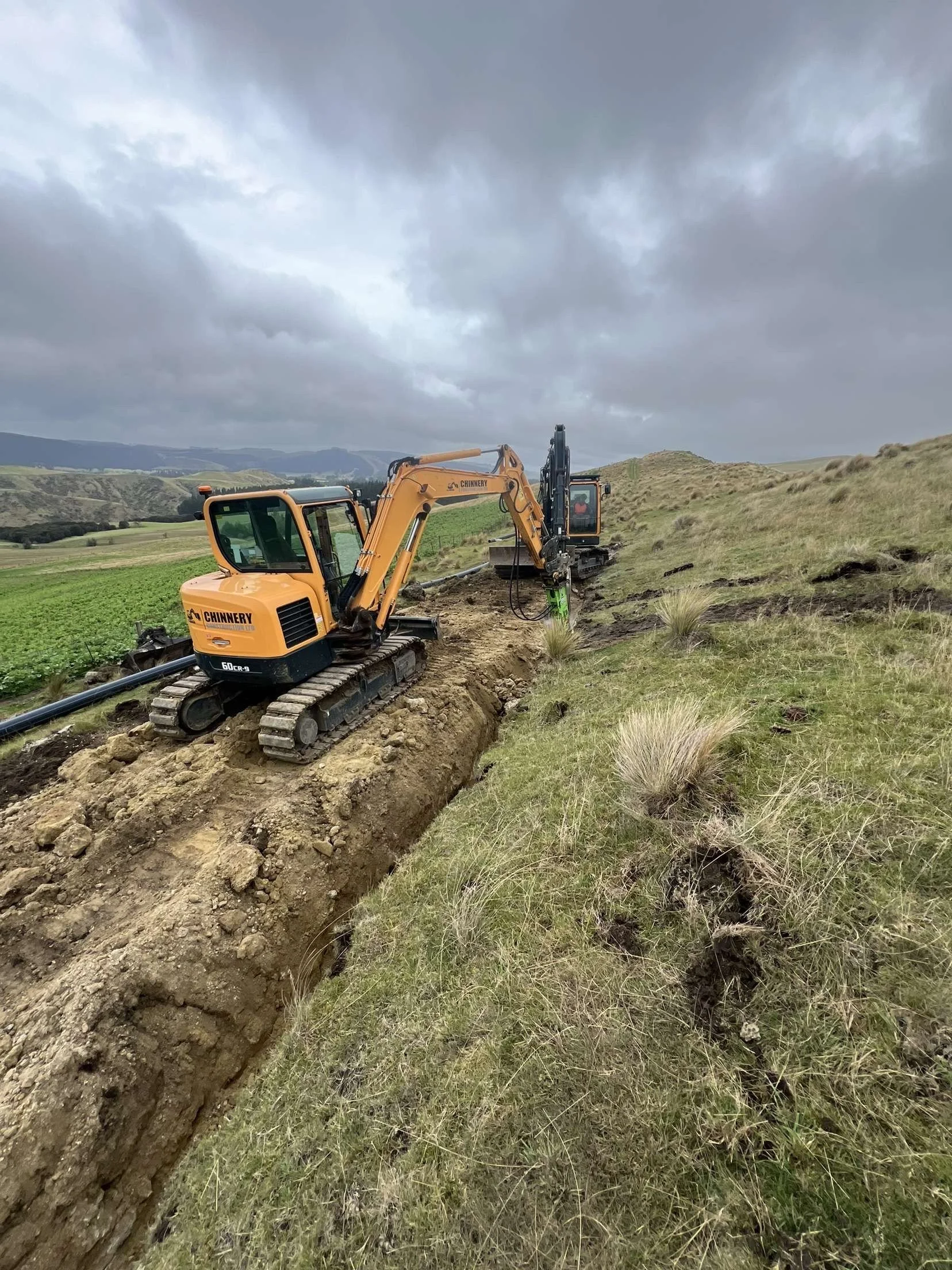

Excavators digging a trench in a grassy field on a cloudy day.

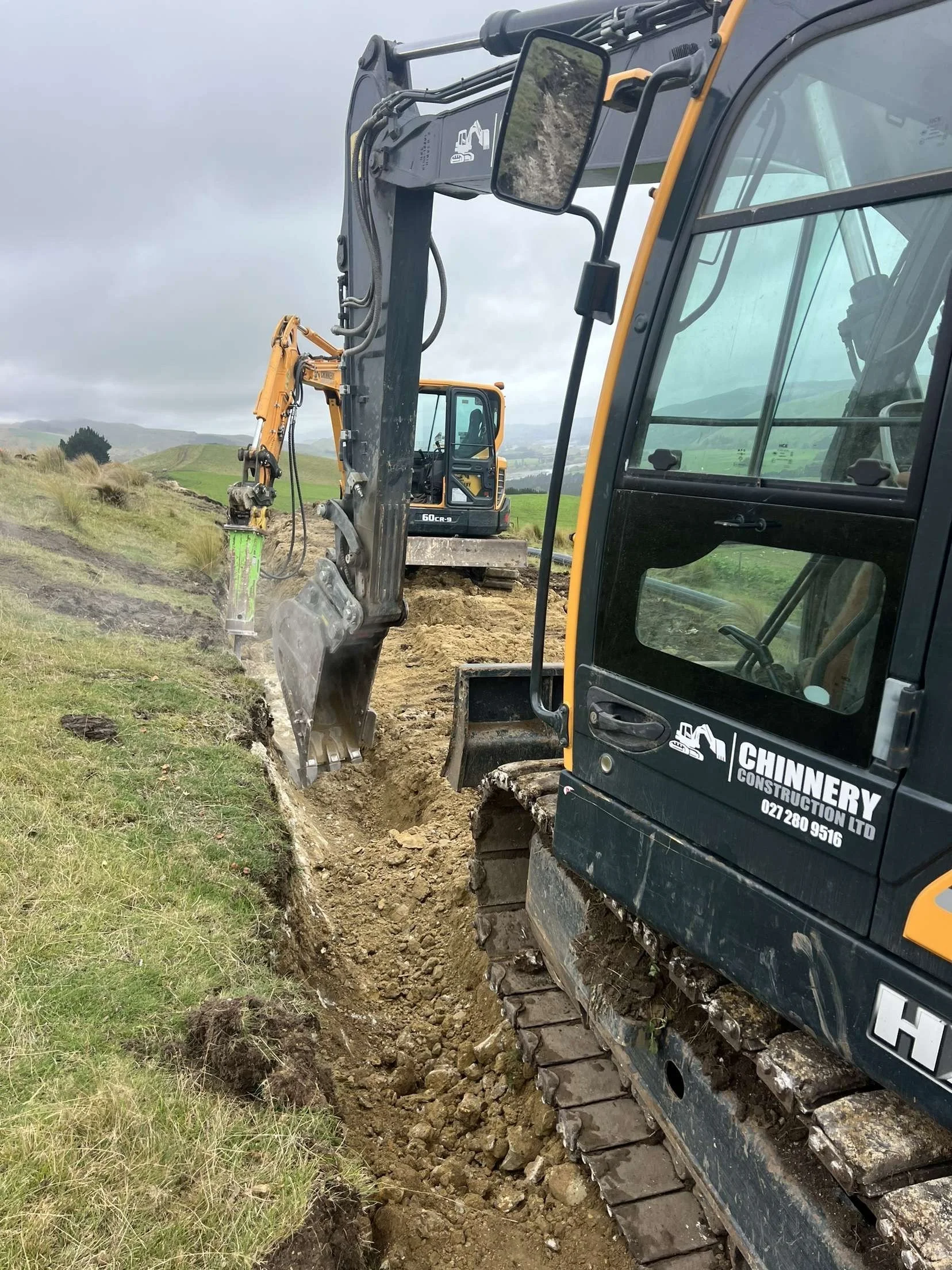

Excavation work with two yellow excavators digging a trench in a grassy hillside under cloudy skies.

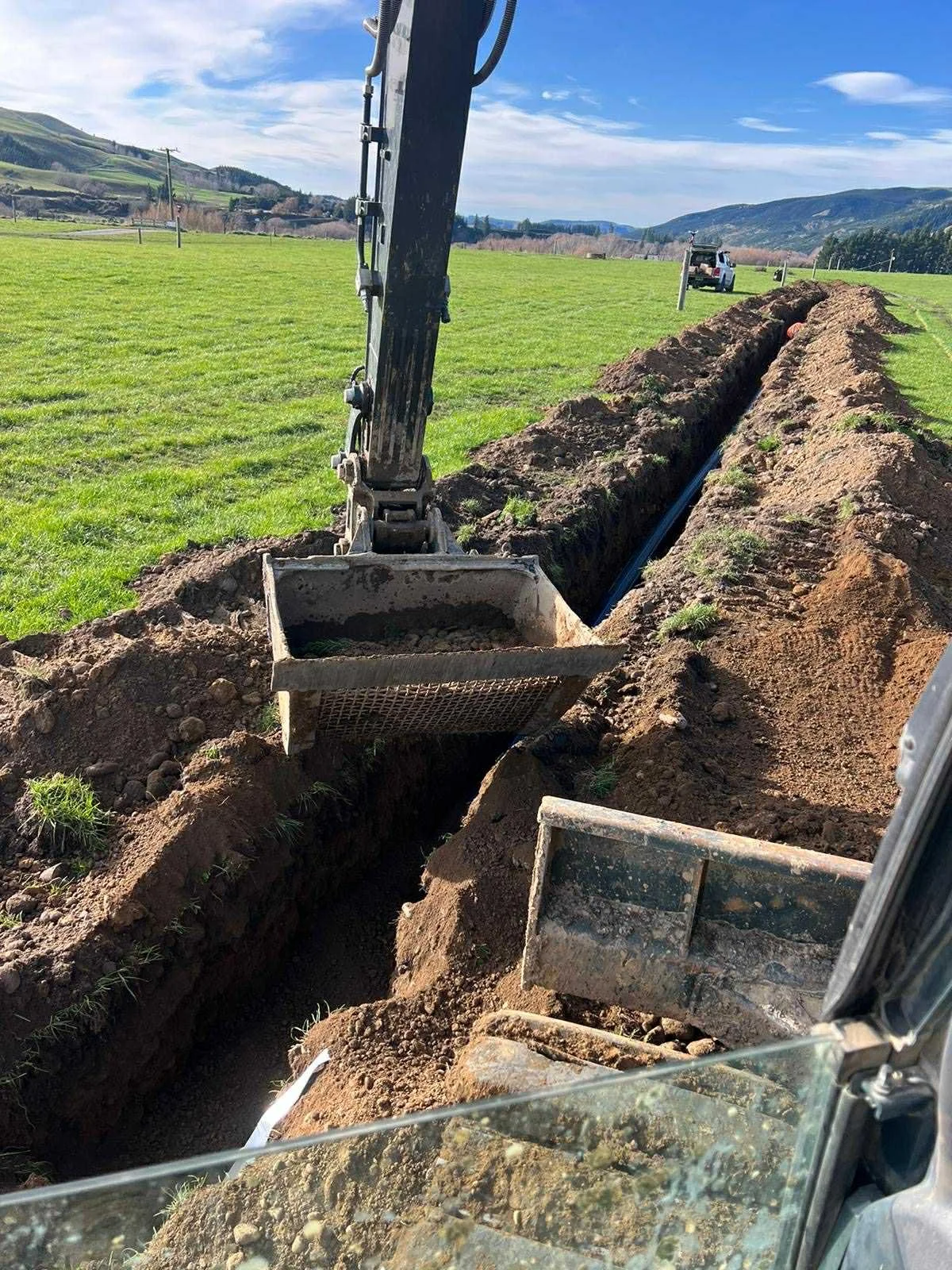

Excavator digging a trench in a grassy field with mountains and a blue sky in the background.

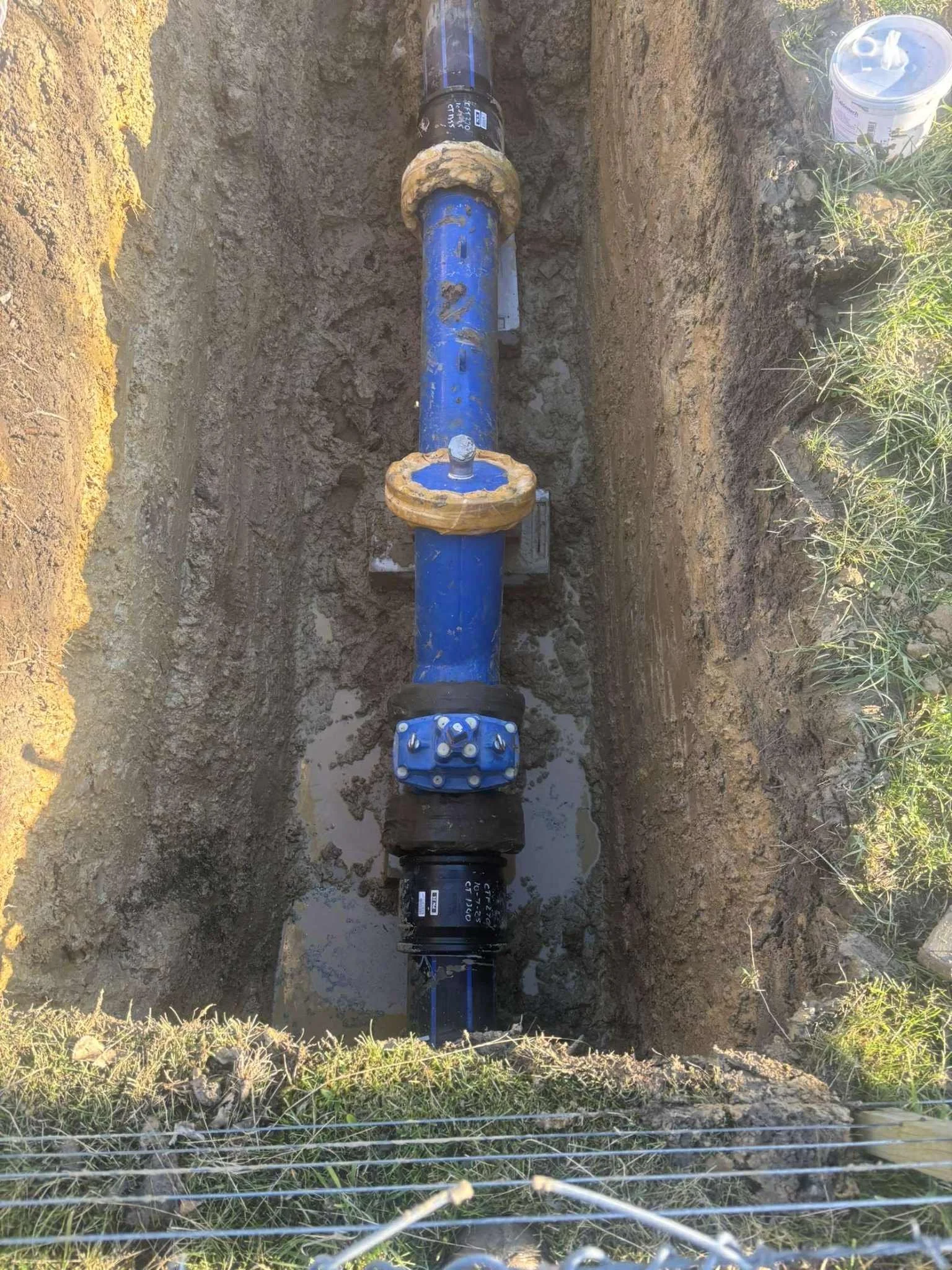

A blue water pipe with valves installed in a trench, surrounded by dirt and some grass, and a plastic cup on the ground nearby.

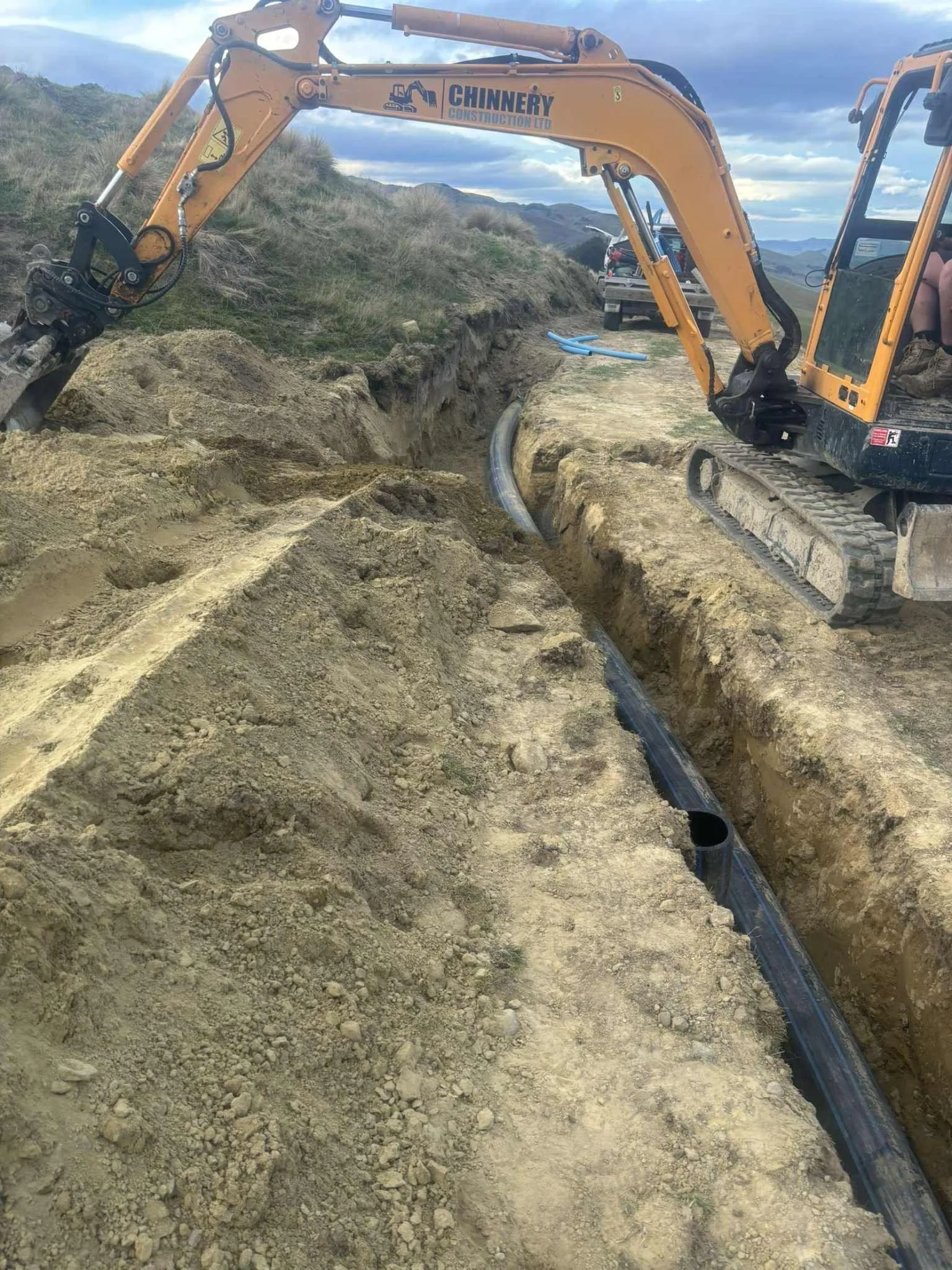

Excavator digging a trench to install a large black pipe in a rural area with mountains in the background.
Construction site with a trench showing black plastic pipes being installed, a vehicle loaded with tools and equipment, and mountains in the background.

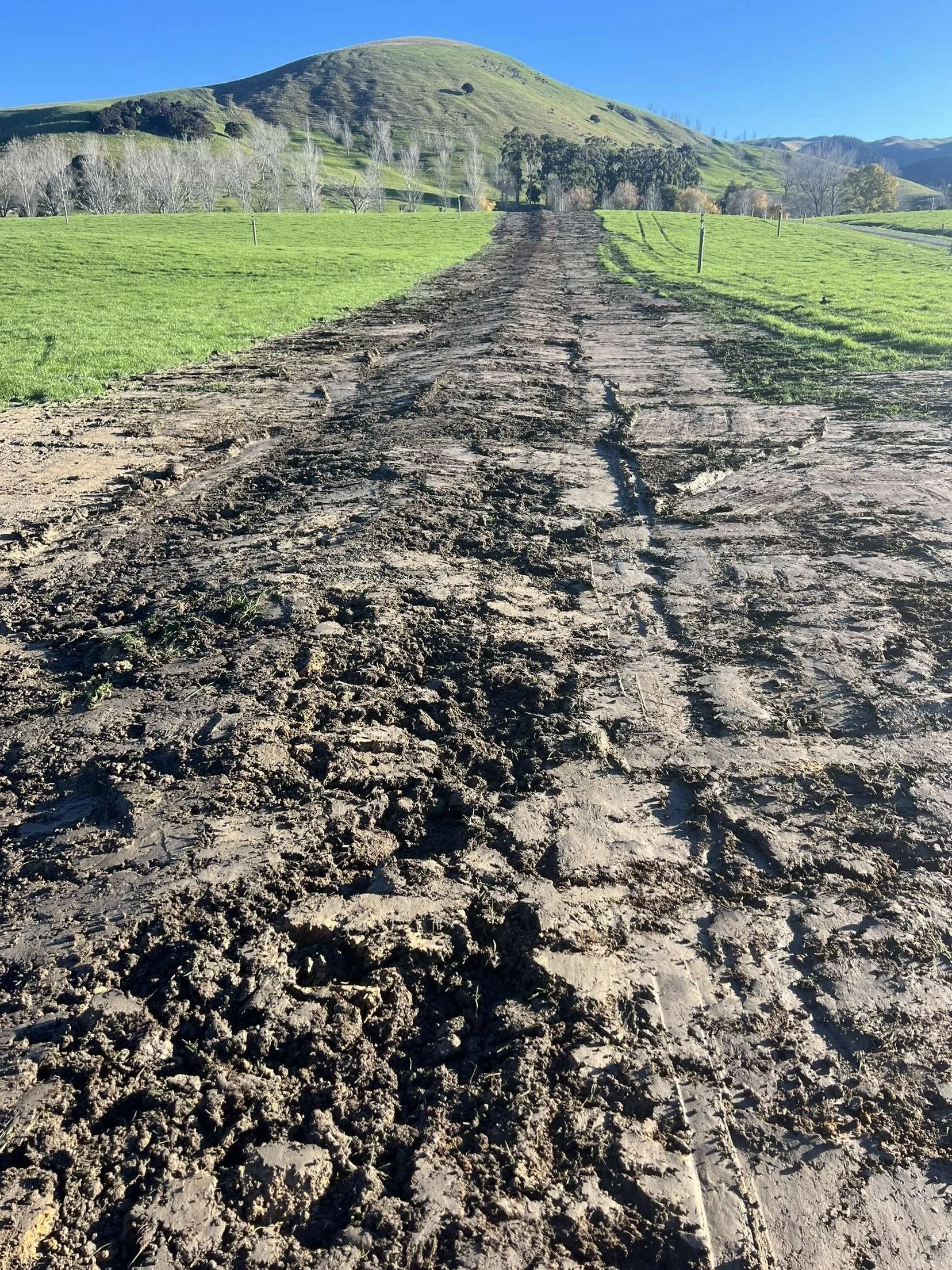

A dirt road with tire tracks runs through a grassy field towards a hill in the distance under a clear blue sky.

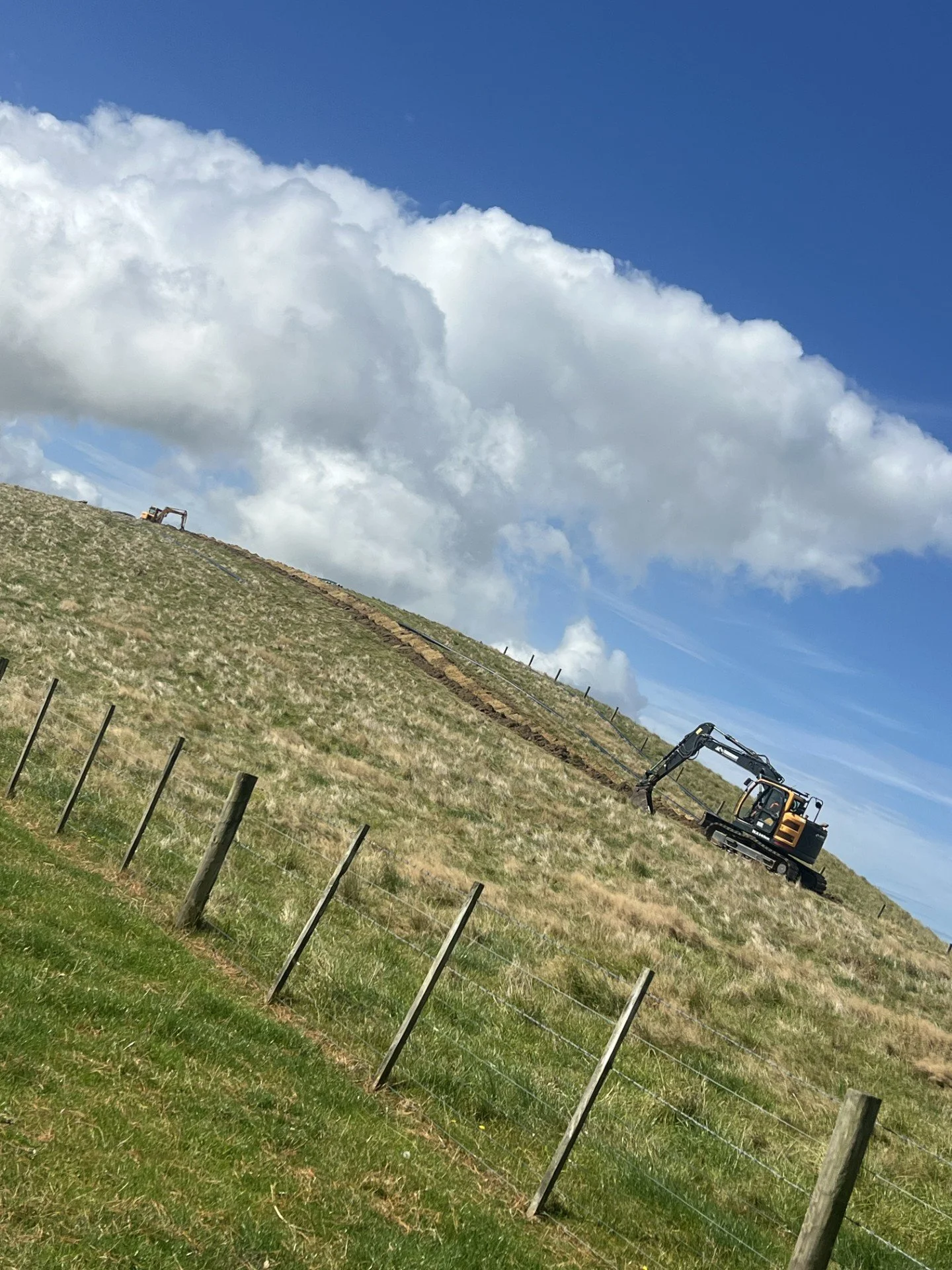

Construction excavator working on a hillside with a blue sky and clouds in the background, a fence running along the grassy foreground.
